CNC Equipment
On-Demand Machining & Prototyping
Modern CNC machining centers and precision metrology equipment — continually upgraded to serve aerospace, defense, and commercial industries.
To adequately meet the on-demand machining and prototyping requirements of our customers, we've made continual investments in the most modern CNC machining centers and precision metrology equipment available. Every piece of equipment in our facility supports our capability and flexibility to manufacture increasingly complex designs for companies in the aerospace, defense, and other various commercial sectors.
Run by our experienced operators, our CNC machining centers are crucial to our ability to quickly transition projects from the prototyping stage to final production runs. Furthermore, customers can expect components that meet rigid tolerances and finish specifications after they're thoroughly inspected by our precision metrology machines. Our equipment is paramount to our AS9100 and ISO 9001 certifications and maintains our advantage over other machine shops when it comes to on-demand machining and prototyping jobs.
CNC Machining Centers
Our CNC Machining Centers
CNC machining centers encompass a wide range of different equipment that are essential to modern manufacturing and EGM's success in on-demand machining and prototyping jobs. Each one of our CNC machining centers offers a unique set of capabilities that allow our machine operators to produce complex components with rigid tolerances.

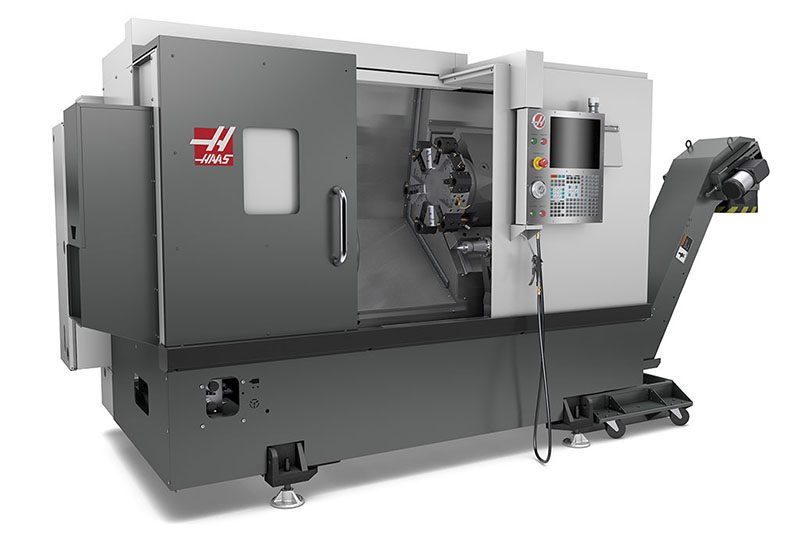

Our primary turning center used for high-volume production jobs or complex multi-face machining. Enables multiple operations in a single setup, saving time and cost while delivering precise and consistent results.
| Chuck Size | 6" Hydraulic Chuck |
| Travel X | 13.78" |
| Travel Z-Axis | 13.00" |
| Spindle Speed | 6,000 RPM |
| Spindle HP | 20 HP |
| Rotary Tool Speed | 6,000 RPM |
| Rotary Tool HP | 5 HP |

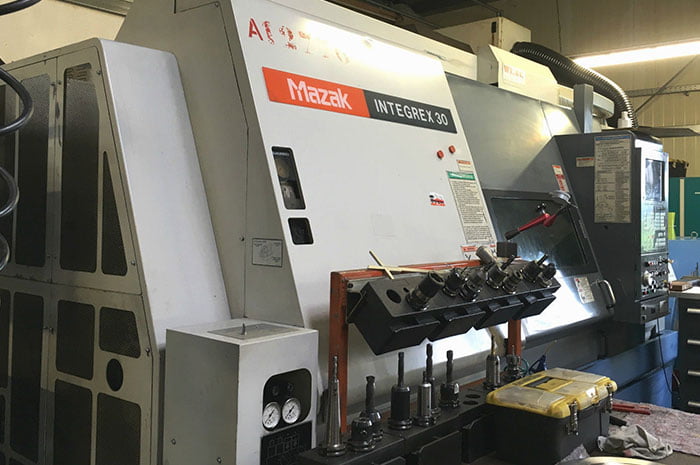

Travels along X, Y, and Z axes with spindle speeds ranging from 35 to 3,500 RPM. Used for surface facing, threading, and contouring with incredible flexibility across a wide range of materials and part sizes.
| Chuck Size | 12" Hydraulic Chuck |
| Travel X | 17.75" |
| Travel Y-Axis | +/- 3.5" |
| Travel Z-Axis | 40.5" |
| Spindle Speeds | 35–3,500 RPM |
| Spindle HP | 30 HP |
| Rotary Tool Taper | #40 |
| Rotary Tool Speed | 15–6,000 RPM |
| Rotary Tool HP | 10 HP |

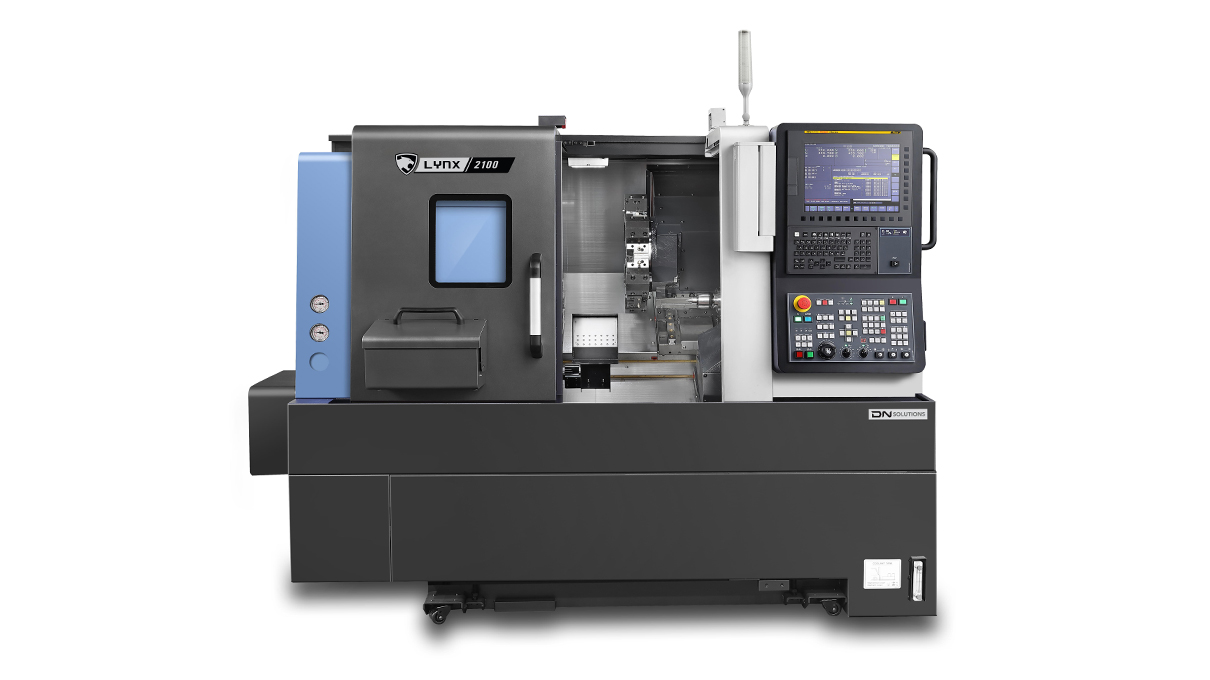

A high-performance turning center delivering excellent rigidity and thermal stability for consistent part accuracy. Ideal for medium to large diameter turning operations across a wide variety of materials.
| Chuck Size | 8" Chuck |
| Max Turning Diameter | 14.76" |
| Max Turning Length | 22.04" |
| Spindle Speed | 4,000 RPM Max |
| Spindle HP | 20 HP |
| Tool Stations | 12-Station Turret |

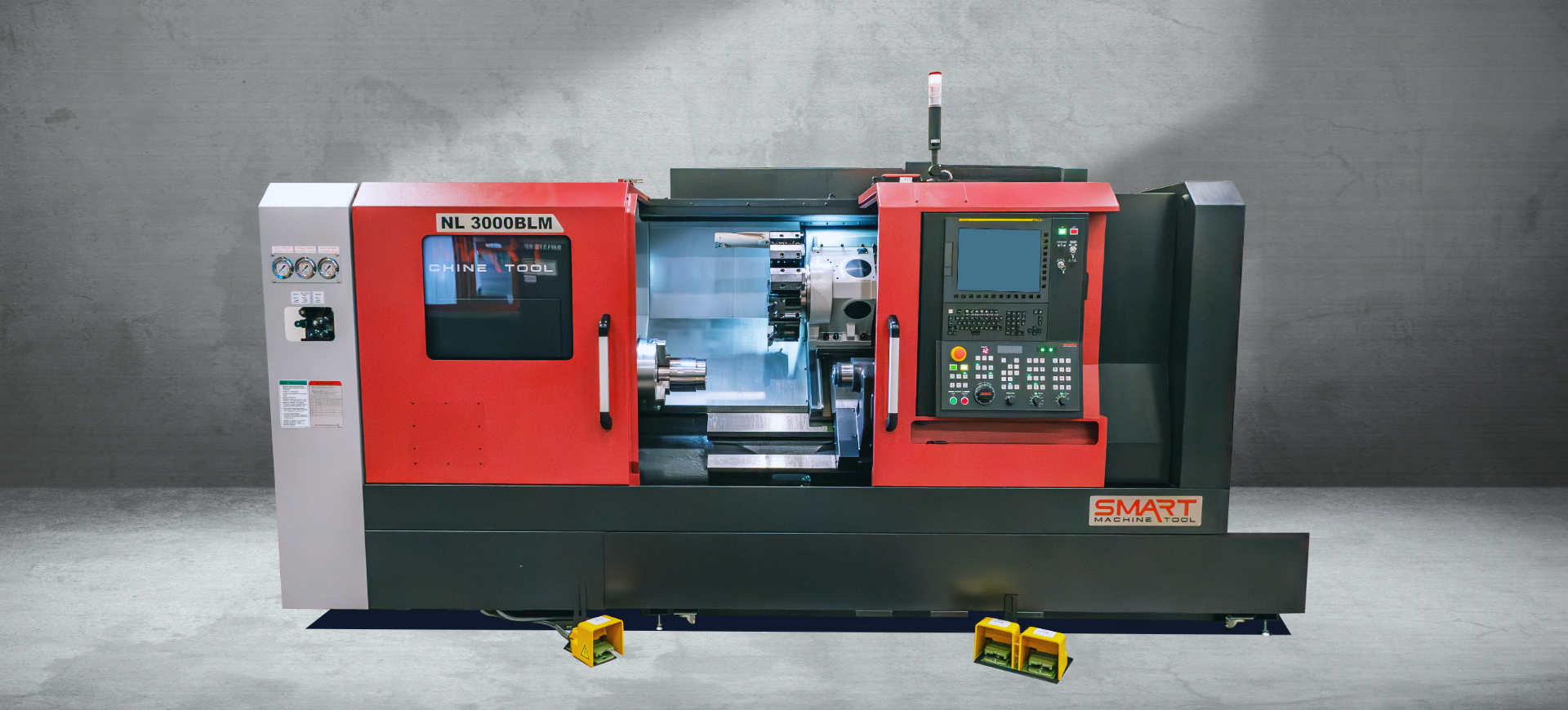

A robust slant-bed CNC lathe with live tooling capability, suited for high-precision turning of long shaft components and complex turned parts requiring secondary milling operations in a single setup.
| Max Turning Diameter | 25.6" |
| Max Turning Length | 47.2" |
| Spindle Speed | 3,500 RPM Max |
| Spindle HP | 25 HP |
| Live Tooling | Yes |

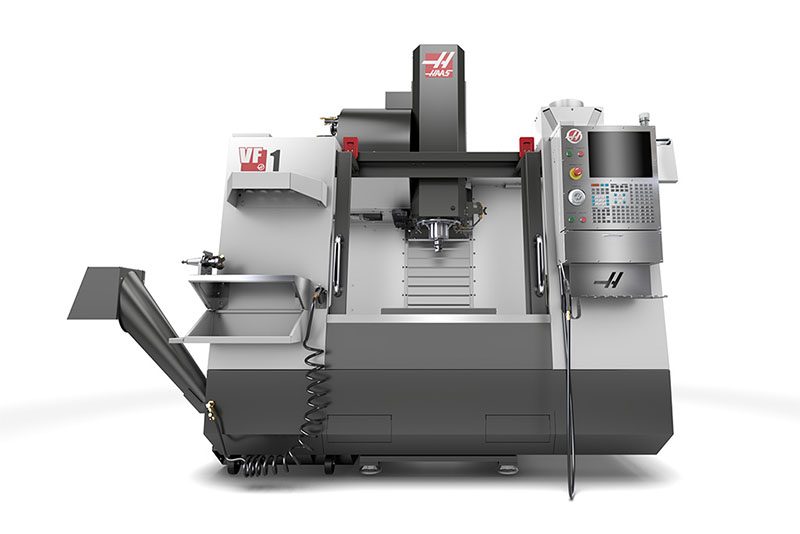

A compact yet capable VMC ideal for smaller precision parts and prototyping runs. Its tight work envelope and fast tool changes make it an efficient choice for high-mix, low-volume machining.
| Longitudinal Travel (X) | 20" |
| Cross Travel (Y) | 16" |
| Spindle Travel (Z) | 20" |
| Spindle Speeds | 7,500 RPM Max |
| Spindle Horsepower | 20 HP |
| Spindle Taper | #40 CAT |

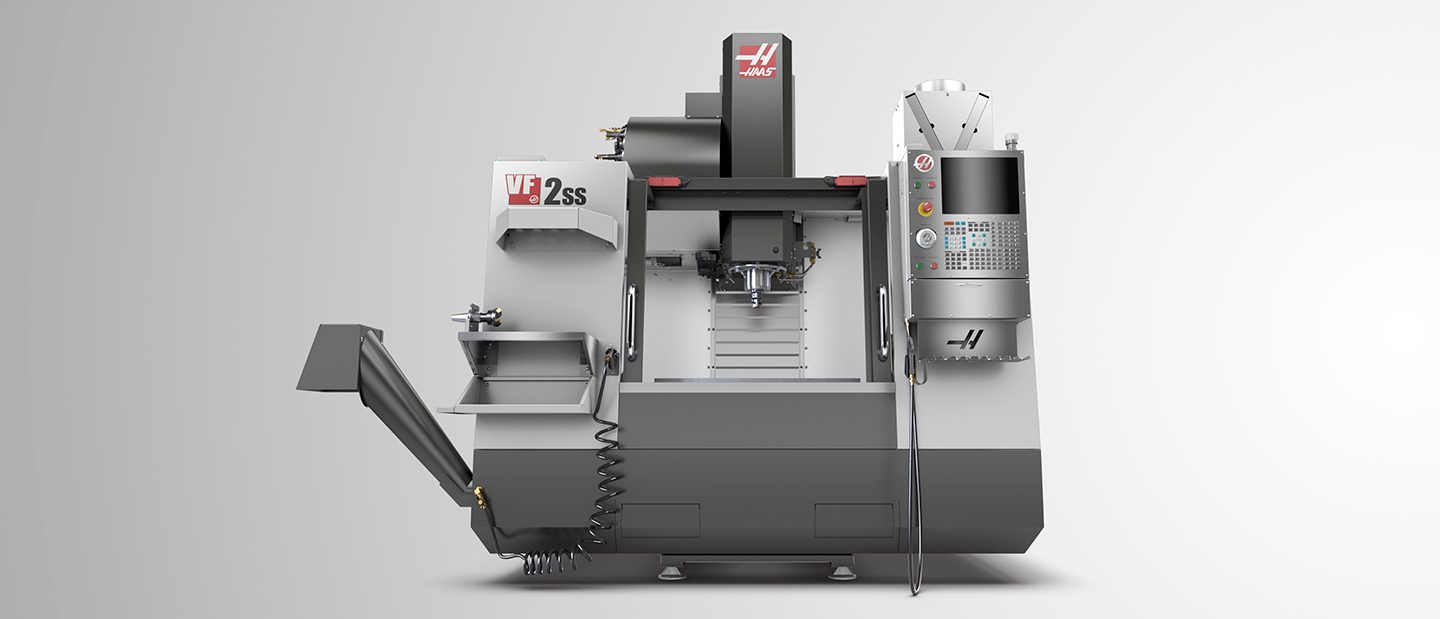

The Super-Speed variant of our HAAS VF-2, delivering 12,000 RPM spindle performance for dramatically reduced cycle times on aluminum and other non-ferrous materials. Versatile across prototyping and production runs.
| Longitudinal Travel (X) | 30" |
| Cross Travel (Y) | 16" |
| Spindle Travel (Z) | 20" |
| Spindle Speeds | 12,000 RPM Max |
| Spindle Horsepower | 30 HP |
| Spindle Taper | #40 CAT |
| 4th Axis Option | HRC-210 Rotary |

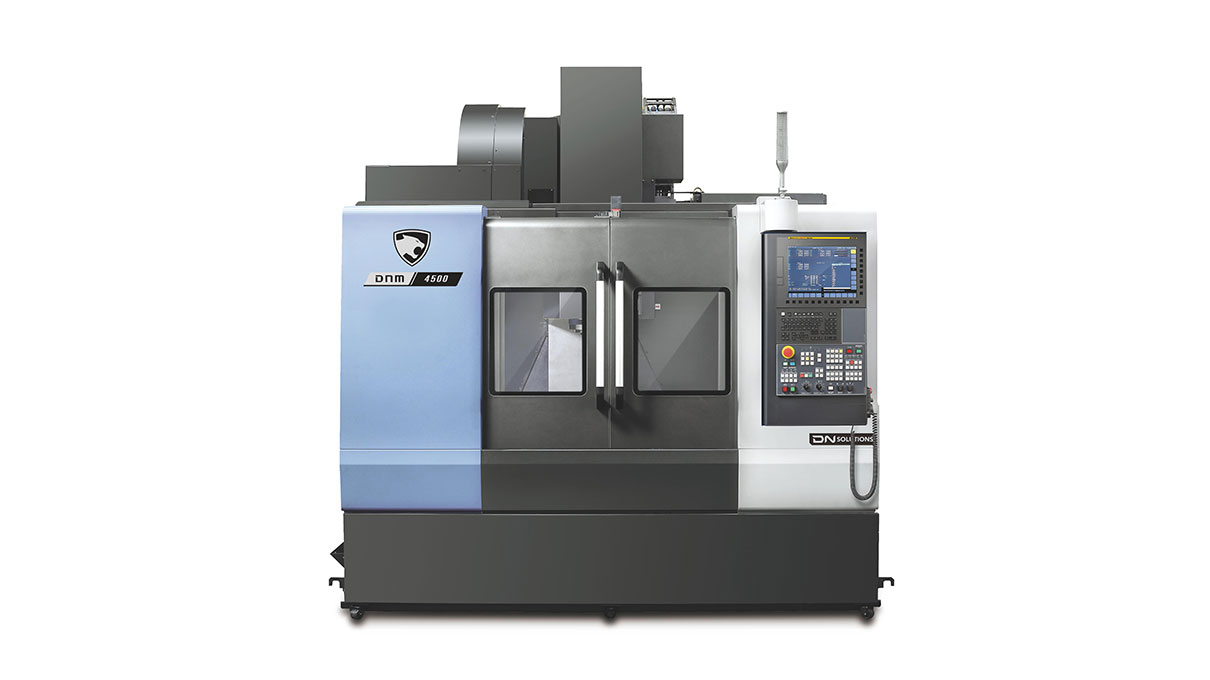

A high-rigidity vertical machining center with an optimized column structure for superior thermal stability. Delivers consistent accuracy across medium-volume production runs with a generous work envelope.
| Longitudinal Travel (X) | 40.2" |
| Cross Travel (Y) | 20.1" |
| Spindle Travel (Z) | 20.1" |
| Spindle Speeds | 12,000 RPM Max |
| Spindle Taper | CAT40 |

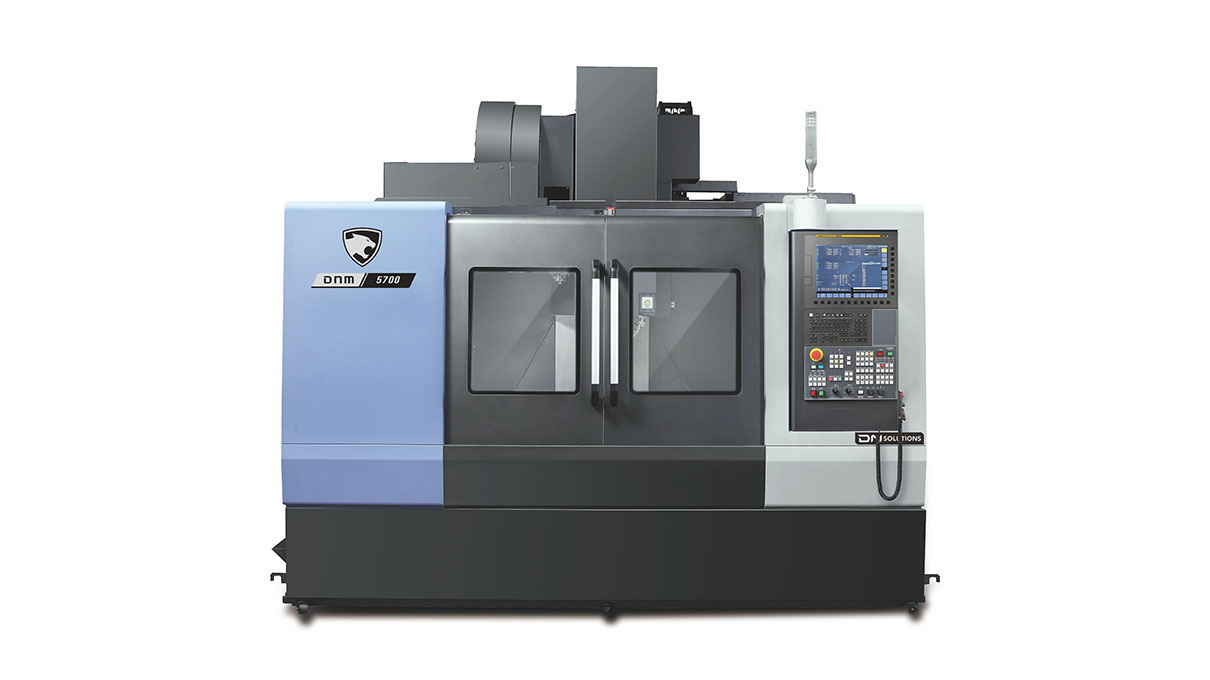

Our largest VMC, offering an extended X-axis travel of over 55 inches for machining large aerospace and structural components. Combines high-speed spindle performance with a heavy-duty, thermally compensated machine structure.
| Longitudinal Travel (X) | 55.1" |
| Cross Travel (Y) | 26.4" |
| Spindle Travel (Z) | 24.0" |
| Spindle Speeds | 12,000 RPM Max |
| Spindle Taper | CAT40 |

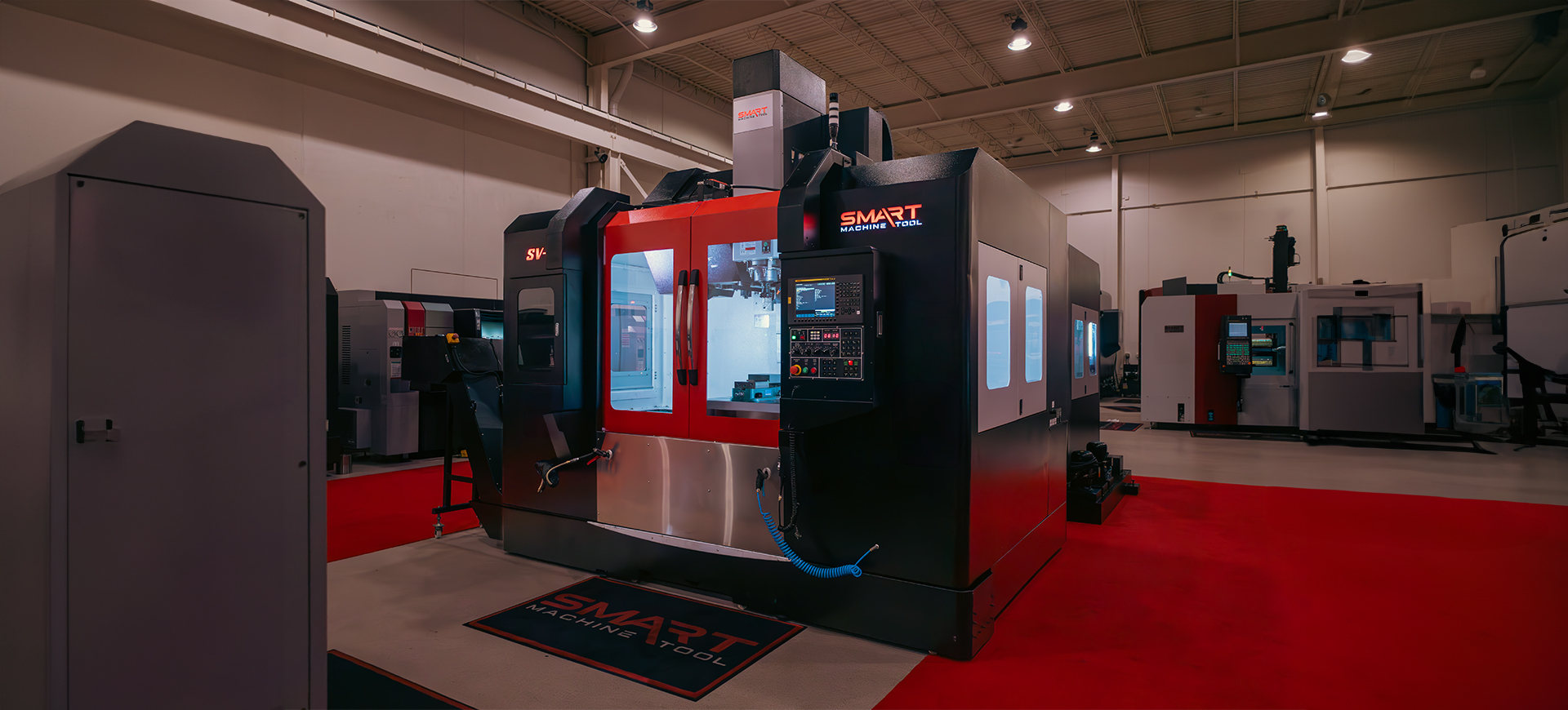

A powerful box-way VMC built for heavy cutting on steel, stainless, and exotic alloys. Its rigid construction and high-torque spindle make it well-suited for demanding aerospace and defense component applications.
| Longitudinal Travel (X) | 59.1" |
| Cross Travel (Y) | 31.5" |
| Spindle Travel (Z) | 27.6" |
| Spindle Speeds | 8,000 RPM Max |
| Spindle Taper | CAT50 |

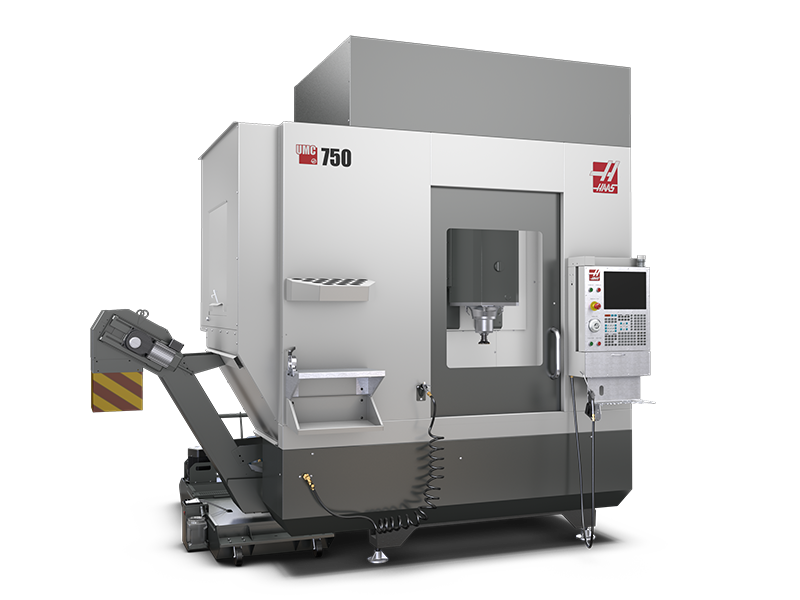

Our premier 5-axis machining center — combines horizontal and vertical capabilities across five independent axes. Allows us to expand into specialty aerospace, medical, and defense projects that require 5-axis capabilities, machining complex geometries in a singular setup.
| Longitudinal Travel (X) | 30" |
| Vertical Travel (Y) | 20" |
| Spindle Travel (Z) | 20" |
| Spindle Speeds | 8,100 RPM Max |
| Spindle Horsepower | 30 HP |
| Spindle Taper | #40 CAT |
| A Axis Travel | 360° |
| B Axis Travel (Trunnion) | -35 to 110° |

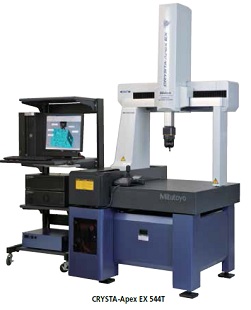

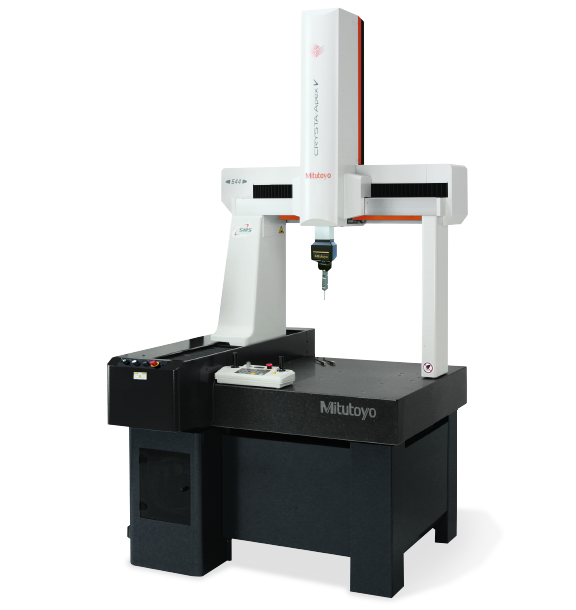

As part of our AS9100 and ISO 9001 certifications, we maintain a suite of modern precision metrology equipment to verify the accuracy and quality of every machined component before it leaves our facility.
| Travel X-Axis | 19.69" |
| Travel Y-Axis | 27.56" |
| Travel Z-Axis | 15.75" |
| Travel X-Axis | 19.69" |
| Travel Y-Axis | 15.75" |
| Travel Z-Axis | 15.75" |
| Screen Size | 14" |
| Max Work Load | 100 Pounds |
| Magnification Lens | 10x |
